Aluminum Square Tubes for Facade & Structure: Custom Sizes, Finishes, and Installation Support
High-Quality Aluminum Square Tubes For Architectural Facades And Frames. Custom Sizes & Wall Thickness (PVDF / Powder / Anodize). Drawing Detailing & Installation System Support For SEA / APAC Projects.
Aluminum square tubes are widely used in facade subframes, screen systems, sun-shading frames, and lightweight architectural structures. At ZOLON Aluminium, we supply project-ready aluminum square tubes with stable quality control, multiple finish options, and drawing-based engineering support—helping SEA / APAC projects move faster from concept to fabrication and installation.
Why Aluminum Square Tubes For Facade & Structure
Lightweight but strong: ideal for facade subframes and decorative structures.
Corrosion resistance: suitable for humid coastal climates in Southeast Asia.
Flexible design: easy to combine with perforated panels, louvers, cladding, and screen systems.
Clean appearance: modern, minimal lines—great for commercial and residential architecture.
Specifications We Can Supply
Material Options
6063-T5 / 6063-T6 (common for architectural profiles)
6061-T6 (when higher strength is required)
Size & Thickness
Square/rectangular tube sizes: customizable (e.g., 20×20mm up to 150×150mm or larger upon request)
Wall thickness: customizable (typical architectural range 1.0–5.0mm, based on design & load)
Length
Standard 5.8m / 6m, or cut-to-length based on your container loading plan.
Surface Finishes for Southeast Asia Projects
For Malaysia & Singapore, finish selection is critical for long-term color stability and weather resistance. We can provide:
PVDF coating – excellent UV and corrosion resistance for exterior applications
Powder coating – cost-effective, wide color range (interior/exterior use based on powder grade)
Anodizing – clean metallic look, good wear resistance
Mill finish / brushed – for indoor or further fabrication
Color Matching
We can match common RAL colors or provide samples for approval.
Fabrication & Value-Added Services
We don’t only supply tubes—we help you finish the system.
Cutting, drilling, punching, CNC machining
Welding & assembly support (based on project requirement)
Protective packaging for export shipment
Shop drawings & detailing based on your design drawings
Installation system support (recommended fixing method, brackets, subframe logic)

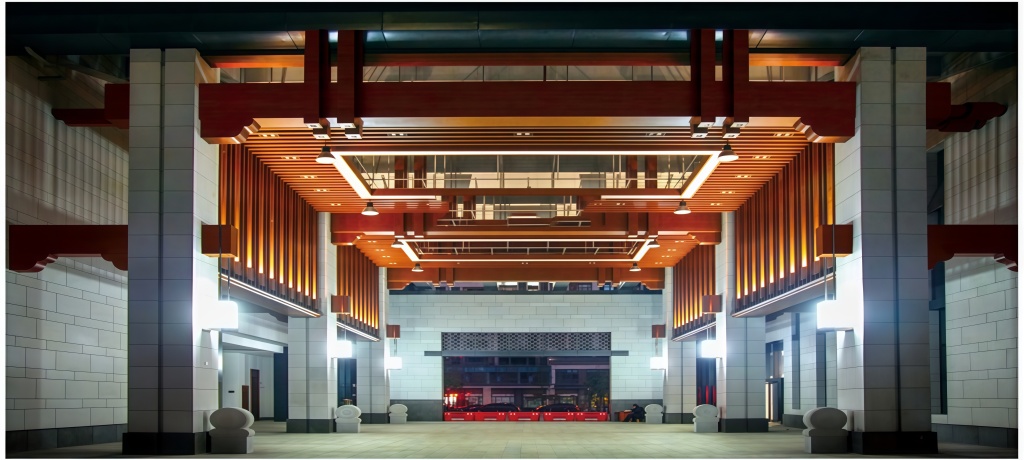

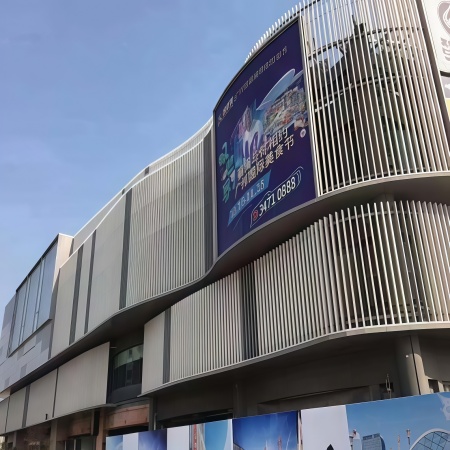

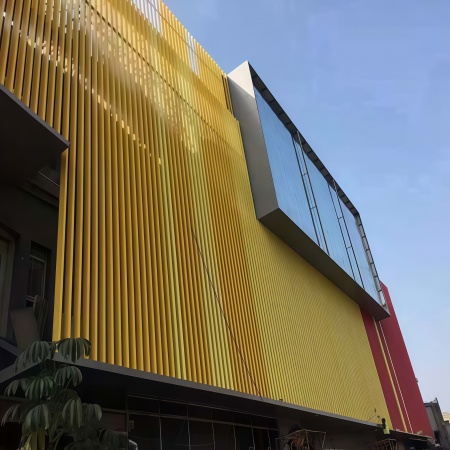

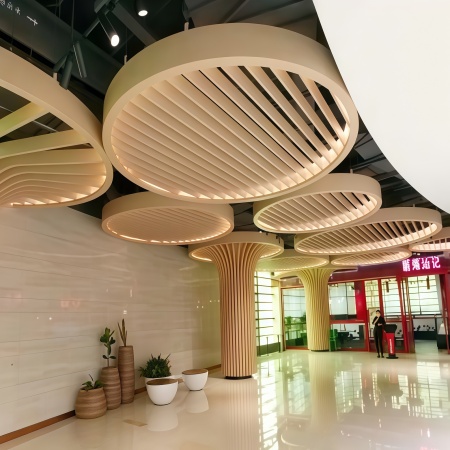

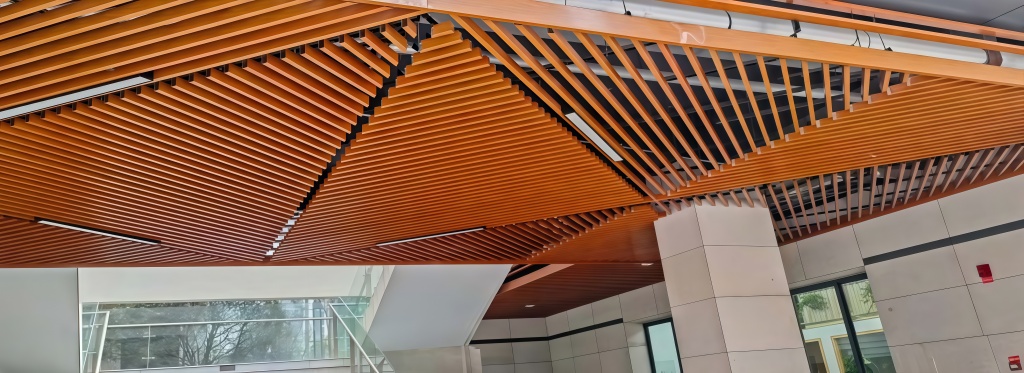

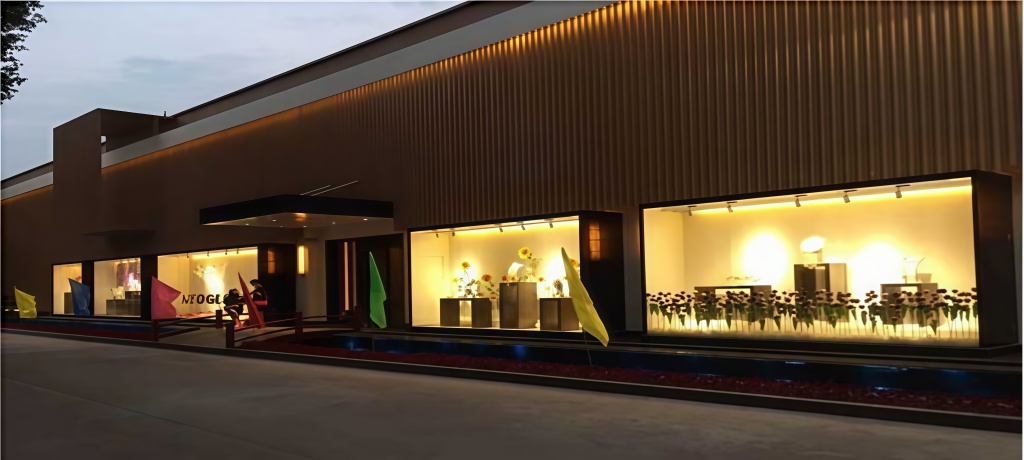

Typical Applications
Facade subframes / cladding support
Sunshade & louver frames
Decorative screens & architectural features
Canopies, entrances, lightweight structural frames
Interior partitions & feature walls
Quality Control & Export Delivery
We follow QC from raw material to finished coating, with dimensional checks and surface inspection. Packaging is designed for export shipment to reduce damage during transport.
For SEA / APAC projects, please send:
Drawings (PDF / DWG) or concept sketches
Key dimensions + quantity
Target finish + color requirement
Timeline / delivery preference
We’ll reply with recommended specifications and a quotation.
